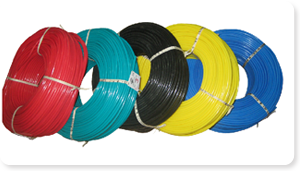

PVC Cable Sleeves
PVC Sleeves Features of PVC Sleeves Widely used for protection of cable harnesses. To be used before wires are connected to any type of terminal…
 |
Features of PVC Sleeves
- Widely used for protection of cable harnesses.
- To be used before wires are connected to any type of terminal.
Specifications:
- Material:PVC
- Inner Diameter (in MM):0.5mm to 22 mm
- Wall Thickness (in mm):0.40 to 1.25 mm
- Standard Colors:Black,Red,Blue,Yellow,Green & Transparent
- Standard Packing:30 Mtr Roll and 100 Mtr Roll
- Used for:Protection of cable harnesses
- Ultimate Elongation: 275%
Tensile strength: 15.50 N/mm2
Working Temperature: -200 C to + 850 C
Available Sizes
| Item No. | Inner Diameter (in mm) | Wall Thickness (in mm) | Standard Colors | Standard Packing |
| SL0.5X | 0.50 | 0.40 | Black,Red,Blue,Yellow,Green & Transparent | 100 Mtr Roll |
| SL1X | 1.00 | 0.40 | " | " |
| SL1.5X | 1.50 | 0.40 | " | " |
| SL2X | 2.00 | 0.40 | " | " |
| SL2.5X | 2.50 | 0.40 | " | " |
| SL3X | 3.00 | 0.40 | " | " |
| SL3.5X | 3.50 | 0.40 | " | " |
| SL4X | 4.00 | 0.40 | " | " |
| SL5X | 5.00 | 0.40 | " | 30 Mtr Roll |
| SL6X | 6.00 | 0.50 | " | " |
| SL7X | 7.00 | 0.50 | " | " |
| SL8X | 8.00 | 0.50 | " | " |
| SL9X | 9.00 | 0.50 | " | " |
| SL10X | 10.00 | 0.50 | " | " |
| SL12X | 12.00 | 0.55 | " | " |
| SL14X | 14.00 | 0.75 | " | " |
| SL15X | 15.00 | 0.75 | " | " |
| SL16X | 16.00 | 0.75 | " | " |
| SL18X | 18.00 | 0.75 | " | " |
| SL20X | 20.00 | 0.75 | " | " |
| SL22X | 22.00 | 0.75 | " | " |
| SL25X | 25.00 | 0.75 | " | " |
| SL30X | 30.00 | 1.00 | Black | " |
| SL32X | 32.00 | 1.00 | " | " |
| SL35X | 35.00 | 1.00 | " | " |
| SL40X | 40.00 | 1.00 | " | " |
| SL50X | 50.00 | 1.25 | " | " |
| 1. Note: "X" in all item no. denotes the colour of sleeve required. 2. Other sizes of different inner diameters, wall thickness and colours are available on request. |
||||
